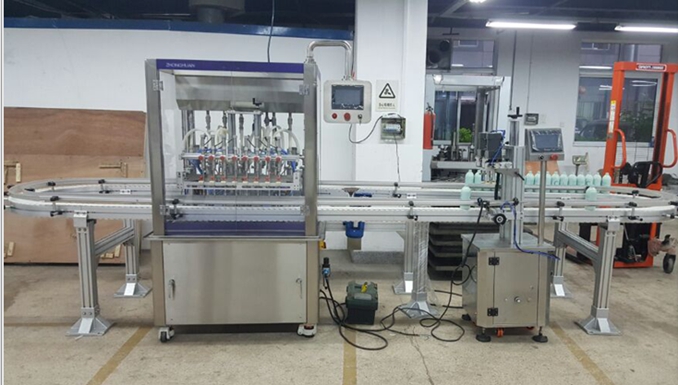

Shampoo lotion filling machine

Bottle Inlet Machine ZH-1

1. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
2. Suitable diameter of bottles: Ф40mm~Ф100mm
3. It utilizes stepless speed regulation technology.

Major Characteristics
The template of this machine adopts stepless speed adjust foe slew, make all the bottles enter into conveyer belt in order under the rotary tangential force, less labor, boost production efficiency.
This machine can be used after electrified. Easing operating, it can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical,food, chemical etc. it is a good choice for small, medium, large factory.
Main Performance Parameter：
1.Machine dimension (L×W×H) : 1700mm×1300mm×1350mm
2.Weight of machine : 300kg
3.Suitable diameter of bottles : Ф40mm~Ф100mm
4.Diameter of turntable : Ф600-1000mm
5.Power supply : AC 220V; 50Hz
6.Power : 1.5kw
7.Production capacity : 60~120bottles/minute

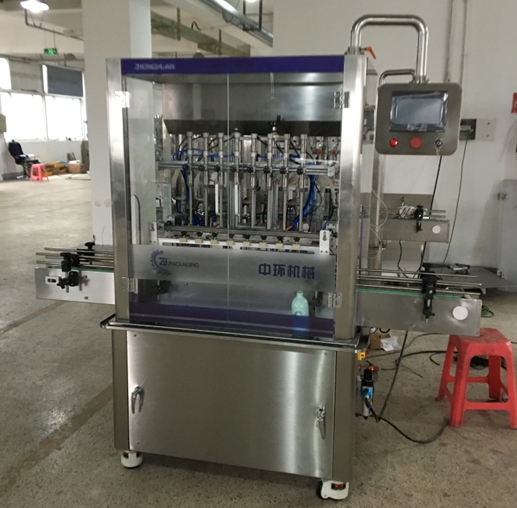

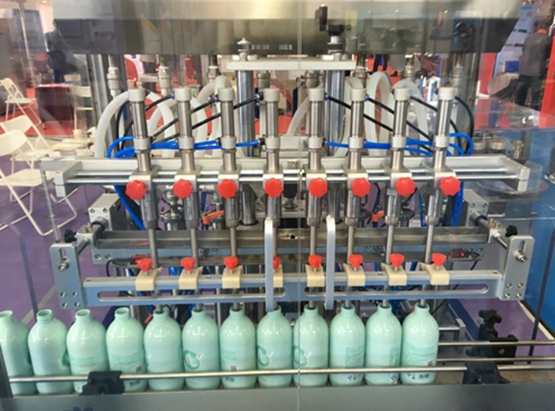

ZH8F-8N Fully automatic linear piston filling machine

This series of injection / atmospheric pressure dual-use filling machine is developed by our company a high-tech products. It is suitable for different viscosity of the water, semi-fluid, paste products, widely used in food, cosmetics, medicine, oil, cosmetic, detergent, pesticides, chemicals and other industries filling products. Using a straight line filling method, can be used for different types of solution filling. No need to add any spare parts.

Features:

◆ The series models are compact and reasonable, nice appearance;

◆ selected with international brand-name electrical components preparation. The main force cylinder selects Taiwan's ADT (AIRTAC) double acting cylinder and magnetic switch. Taiwan Delta company PLC computer, Omron photoelectric, Taiwan Velon touch screen, to ensure its excellent quality and lasting stability of the performance;

◆ machine maintenance convenience, without any tools, you can easily disassemble cleaning installation, easy to adjust. Adjust the measurement, can be adjusted to a large range of measurement, and then fine-tuning. Can do no bottle, no bottle filling, measurement accuracy;

◆ The filling system of the machine adopts the clamp type fast fitting sanitary joint. The entire cylinder from top to bottom without tools can be easily removed cleaning installation. Simple structure design, easy operation and maintenance.

Technical Parameters:

Model: ZH8F-8N

Filling speed: 40-60b / min (500ML / 8head)

Filling accuracy: ± 1%

Cylinder size: 50-500ML

Working pressure: 5-7KG / ㎡

Machine net weight: 500KG

Dimensions: 1500 * 1000 * 2000MM

ZHTW-180M Automatic Side Locking Machine

This machine is suitable for all kinds of materials, such as plastic bottles, glass bottles, metal bottles, etc .; need to replace the bottle or lid, as long as the adjustment of the location of the

various parts can be replaced without any accessories, In the absence of a bottle. Cover, conveyor, capping machine, folder bottle speed can be frequency control, to adapt to a variety of specifications within the specifications of the nut. (Including: special specifications can be customized). This machine complies with GMP standard requirements.

The machine structure is made of SUS # 304 and aluminum alloy

PLC control system and digital touch screen operation.

Through the vibration plate or lifting mechanism cover automatically classify and reduce the cover device

The limit roller is driven by the servo motor.

Through the touch screen • Torque adjustable to ensure that the cover tightens the normal torque.

The surrounding seat belt is stable and the container is more stable during the capping.

Handwheel adjustment, do not need to adjust other parts.

Options: According to the size of the lid with the vibrating plate, the cover track.

Technical Parameters

Production: 40 - 70 bottles / min

Bottle size: 30 - 120 mm

Total motor power: 1.4 kW

Voltage: 220V / 22050-60Hz

Double side Label machine:

Voltage ：AC220V 50/60HZ single phase

Power cost：1.5KW

accuracy：±1mm

Speed:5000-15000rpm/h

Maximum label supply: diameter 420mm,Inside of paper roll:76mm

Adhesive label parameters：

Body paper：Need to use 62 grams of white Gelaxindi paper, paper is dense and has good internal strength and transmittance, strong and not easy to be torn. Excellent die cutting performance.

Basic weight: 62g/㎡±5% thickness：55μm±5%

Tensile strength： machine direction：16kg/25mm

Transverse：7kg/25mm

Tearing resistance: machine direction:25gram/piece

Transverse：31gram/piece

Transparency：52% Label distance：3-4mm±0.2mm

the distance between The upper and lower side of the label is :2mm
